Top Condition!

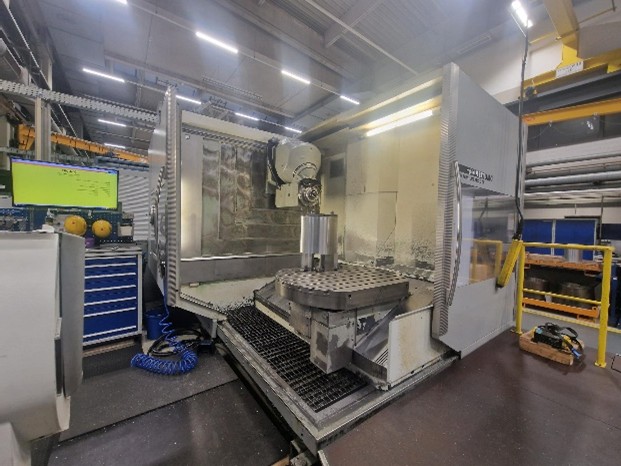

CNC 5-axes
Machining Center
DMG DMU 125 P hi-Dyn
new in 2001

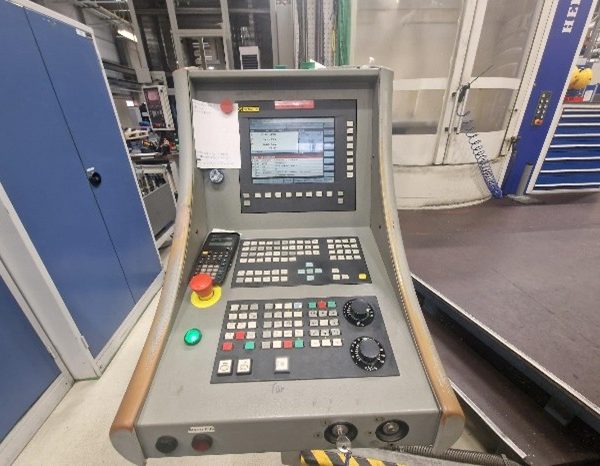

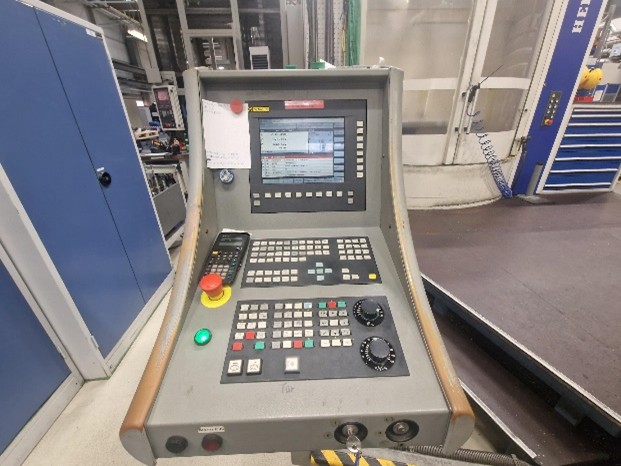

CNC SIEMENS 840 D
table size 1250 x 1000 mm
X-axis /1.250 mm
Y-axis /880 mm
Z-axis /800 mm
CNC Horiz. Boring Machine – Table Type
WOTAN Rapid 4A R/20
New in 1982/2004
CNC SIEMENS 840 D
spindle diameter 150 mm
X-axis 3.000 mm
Y-axis 2.000 mm
spindle stroke 700 mm
RAM stroke 700 mm
RAM dimension 340 x 340 mm
Rotary Table size
2000 x 2500 mm
25 to. loading capacity
V-axis 1500 mm
angular milling head
CNC Vertical Turret Lathe with C-axis
DÖRRIES VCE 200/140
modernized 2008
new in : 1987 / 2008
CNC SIEMENS 840 D
autom. toolchanger 72-pockets
C-axis with driven toolings
chip conveyor
coolant attachment
working area protection
face plate diameter /1.400 mm;
swing diamter /2.000 mm;
turning height /1.500 mm;
Milling spindle 7-3.000 rpm
Ram stroke/ 1.250 mm
RAM section 240 x 240 mm
